Agriculture without fertilizers is no longer possible – without them, today’s estimated global population of 7.9 billion people could not be supported. Fertilizers provide plants with much needed nutrients for optimal growth. The ideal fertilizer depends not only on the crop, but the soil as well. To achieve the best results, knowledge of the fertilizer composition is essential.

2021/03/15/fertilizers-tet/_2

To learn more about the origins of industrial fertilizers, read about the Haber-Bosch process in our series about the History of Chemistry.

A History of Chemistry – Part 4

Different fertilizers for different needs

Fertilizers can be classified in various ways, one of which being their origin. Fertilizers derived from plants and/or animals, such as dung or manure, are usually called «organic fertilizers», while fertilizers obtained from mineral salts or ores are called «inorganic fertilizers».

/2021/03/15/fertilizers-tet/_3

The most often used classification of inorganic fertilizers is based on their nutrient composition. Classification by nutrient composition allows farmers to select the optimal fertilizer for their soil and crops. Single nutrient or straight fertilizers deliver only one nutrient. Examples are ammonium nitrate or single superphosphate. More common are multi-nutrient fertilizers consisting of two or more nutrients. Examples here include monoammonium phosphate or NPK (nitrogen-phosphate-potassium) fertilizers.

Nutrients for plants

The macronutrients nitrogenphosphorus, and potassium are the main nutrients required by the plant for its growth. Other secondary nutrients such as sulfur and calcium, or micronutrients like boron are also essential but required in smaller quantities.


/2021/03/15/fertilizers-tet/_4

Why analyze the fertilizer composition?

Selecting the ideal fertilizer composition is essential for proper plant growth. Crops will suffer from a deficiency in nutrients, however adding an abundance of them can be detrimental, resulting in fertilizer burn for example.

Furthermore, releasing too much fertilizers at once can lead to undesirable environmental pollution. Fertilizer producers are therefore required to specify the amount of nutrients within their products, and various norms from ISO, EN, and AOAC exist for the standardized determination of these nutrients.

Thermometric titration for fertilizer analysis

Traditionally the main nutrients in fertilizers are determined by analytical methods such as gravimetry, photometry, or ICP-OES. These methods require either time-consuming sample preparation or the use of expensive analysis equipment. Thermometric titration provides an inexpensive alternative solution for the analysis of potassiumphosphorussulfurammoniacal nitrogen, and urea without any time-consuming steps.

Using thermometric titration

to analyze fertilizer composition has several benefits:

  1. Analysis of multiple parameters with one device
  2. Automation possibility for analyzing multiple samples a day
  3. Rapid results for each parameter with titration times under five minutes

Want to learn more about the analysis of fertilizers with thermometric titration? Download our free White Paper on this topic.

White Paper: Multiparameter analysis in fertilizers – Fast and easy via thermometric titration

2021/03/15/fertilizers-tet/_5
Metrohm’s maintenance-free Thermoprobe used for fast and reliable indication of thermometric titration endpoints.

What is thermometric titration?

Thermometric titration (TET) is based on the principle of enthalpy change. Each chemical reaction is associated with a change in enthalpy that in turn causes a temperature change. This temperature change during a titration can be measured with a highly sensitive thermistor in order to determine the endpoint of the titration.


If you would like to read more about the basic principles of thermometric titration, click the link below.

Thermometric titration – the missing piece of the puzzle

2021/03/15/fertilizers-tet/_6
Thermometric titration system consisting of a 859 Titrotherm fully equipped with a Thermoprobe, titration stand and buret, and the tiamo software for the multiparameter analysis of fertilizers.

How are the analyses performed?

In this section I will explain how the analyses for various macronutrients in fertilizers are done using thermometric titration.

2021/03/15/fertilizers-tet/_7
Figure 1. Exothermic titration curve of the phosphate determination in an NPK fertilizer (blue = titration curve, pink = second derivative showing the endpoint).

Phosphorus is an essential macronutrient for photosynthesis and optimal crop growth, as it provides the energy to extract other nutrients from the soil. Historically, total phosphorus content is determined by gravimetric analysis. Alternatively, spectrophotometric analysis or ICP-OES may be used for the determination. These methods all require time-consuming sample preparation steps or regular calibrations.

The thermometric titration of phosphorus is based on the gravimetric determination, but without long drying times to achieve constant weight. An appropriate aliquot of sample is added to the titration vessel and 5 mL of pH 10 buffer (ammonium chloride / ammonia) as well as 5 mL of an oxalate solution (to precipitate any interfering calcium) are added. The solution is then made up to 30 mL with deionized water and titrated with a magnesium nitrate titrant until after the exothermic endpoint.


For more detailed information about thermometric titration of phosphorus, download one of the following free application documents.

Determination of phosphoric acid in liquid fertilizer

Total phosphate in phosphoric acid and phosphate fertilizers

Rapid and reliable determination of phosphate in fertilizers



2021/03/15/fertilizers-tet/_8

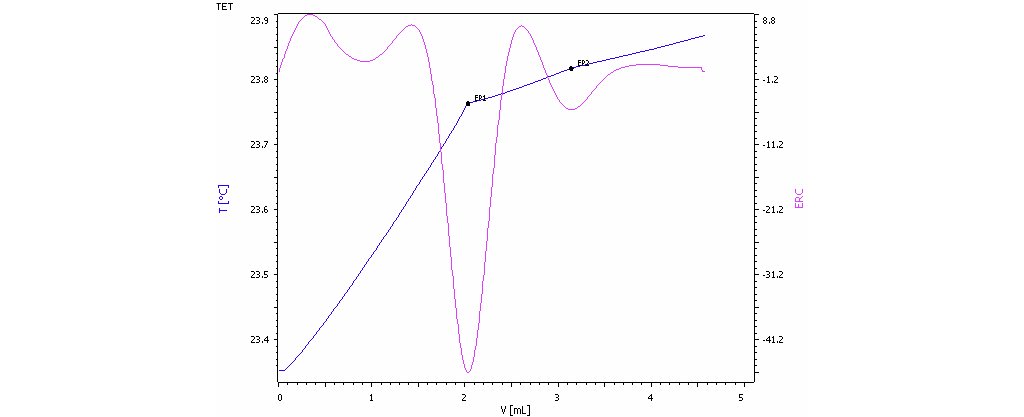

Figure 2. Exothermic titration curve of ammoniacal nitrogen and urea in an NPK fertilizer (blue = titration curve, pink = second derivative showing the endpoint). The first endpoint (left) corresponds to ammonia and the second one (right) to urea.

Nitrogen is an essential macronutrient as it is a component of amino acids (protein building blocks) and nucleic acid (building blocks of DNA). In inorganic fertilizers, nitrogen is usually present as ammonium, nitrate, or urea. Ammonia is usually determined after alkaline distillation by acid-base back-titration, while other nitrogen species are usually first converted to ammonia via digestion prior to analysis.

With thermometric titration, a different approach is used. Ammonium ions as well as urea react exothermically with hypochlorite in a redox reaction. This reaction is further catalyzed in the presence of bromide ions in a slightly alkaline solution.

To analyze ammoniacal nitrogen and urea, an appropriate aliquot of sample is added to the titration vessel and then 10 mL of a bromide/bicarbonate solution is added. The solution is then made up to 50 mL with deionized water and titrated with hypochlorite until after the exothermic endpoint.


For more detailed information about thermometric titration of ammonium and urea, check out the following free Application Notes.

Determination of ammonium ions by titration with hypochlorite

Ammonium and urea nitrogen in NPK fertilizers with TET



2021/03/15/fertilizers-tet/_9

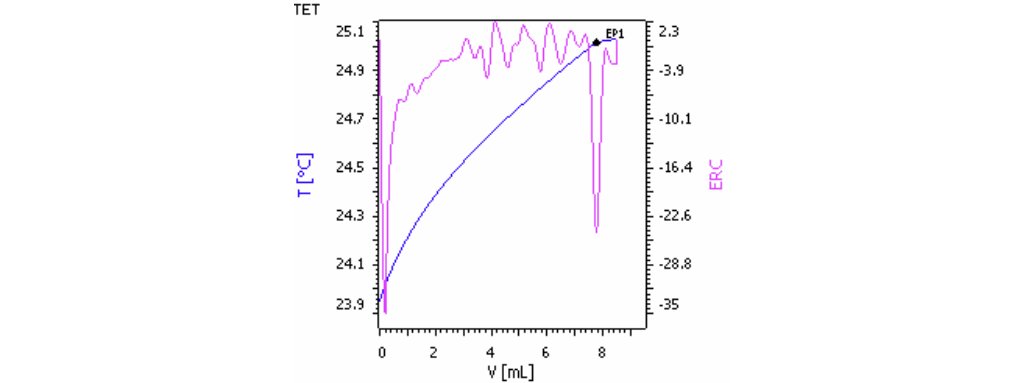

Figure 3. Exothermic titration curve of the potassium determination in potash (blue = titration curve, pink = second derivative showing the endpoint).

Potassium is an essential macronutrient for crops, needed for regulating their water and making them more resistant to droughts. Historically, potassium content is determined by gravimetric analysis. More recently, ICP-OES is used for this determination, but the instrumentation is very expensive.

The thermometric titration of potassium is based on the precipitation of potassium with sodium tetraphenyl borate (STPB). It is a quick titration and for this reason has already been integrated in various Chinese standards on fertilizers (HG/T 2321 for potassium dihydrogen phosphate, GB/T 20784 for potassium nitrate, and GB/T 37918 for potassium chloride).

An appropriate aliquot of sample is added to the titration vessel. The solution is then made up to 30 mL with deionized water and titrated with STPB until after the exothermic endpoint is reached.


For more detailed information about thermometric titration of potassium, download our free related Application Notes

Potassium in fertilizers with TET

Potassium in potash with TET



2021/03/15/fertilizers-tet/_10

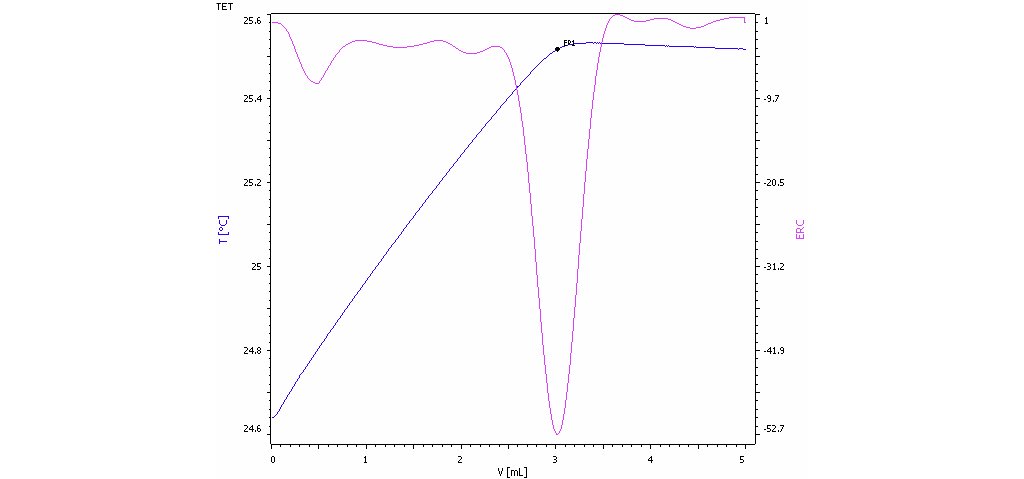

Figure 4. Exothermic titration curve of the sulfate determination in an NPK fertilizer spiked with a known amount of sulfuric acid for better endpoint recognition (blue = titration curve, pink = second derivative showing the endpoint).

Sulfur is a secondary macronutrient and plays an important role in chloroplast growth as well as acting as a catalyst for nitrogen uptake. Sulfur is usually provided in the form of sulfate. Sulfuric acid also influences the wet phosphoric acid production process, and therefore knowledge of its content is crucial.

Conventionally, sulfur is determined by gravimetry. The same precipitation reaction with barium is also used for the thermometric titration, without time-consuming drying to weight.

For the analysis, an appropriate aliquot of sample is added to the titration vessel and acidified (if necessary). The solution is then made up to 30 mL with deionized water and titrated with barium chloride until after the exothermic endpoint. For improved method sensitivity, the samples can be spiked with a standard sulfuric acid solution.


For more detailed information about thermometric titration of sulfur, download our free application documents below.

Determination of sulfate in granular phosphate fertilizers

Determination of sulfate in phosphoric acid (liquid fertilizer samples)

Determination of sulfate in phosphoric acid with standard addition

Sulfate in fertilizers with TET

Summary

Thermometric titration is an inexpensive analysis method without the need for costly maintenance or calibrations. It provides a rapid and robust solution for the determination of multiple parameters in fertilizers. If you wish to learn more about thermometric titration and its potential to solve application challenges do not hesitate to contact your local Metrohm representative!

Author
Meier

Lucia Meier

Technical Editor
Metrohm International Headquarters, Herisau, Switzerland
