Conductive carbon black is an essential additive in modern lithium-ion batteries. It is used as an ingredient in the cathode and forms a conductive chemical structure that ensures that non-conductive materials (e.g., lithium nickel manganese cobalt oxides) are electrically connected to each other and to the current collector. Without conductive carbon black, no electrical current would flow, and the battery cell would not work. It is therefore essential to confirm the properties and quality of carbon black. In this respect, the pH value is among the first easy-to-check parameters.

However, in order to determine the correct pH value, both the method and the measuring equipment must meet the highest quality standards.

In this Application Note, the pH value in carbon black is accurately and reliably analyzed by using a 913 pH Meter equipped with a pH electrode according to ASTM D1512 as well as ISO 787-9 and GB/T 1717.

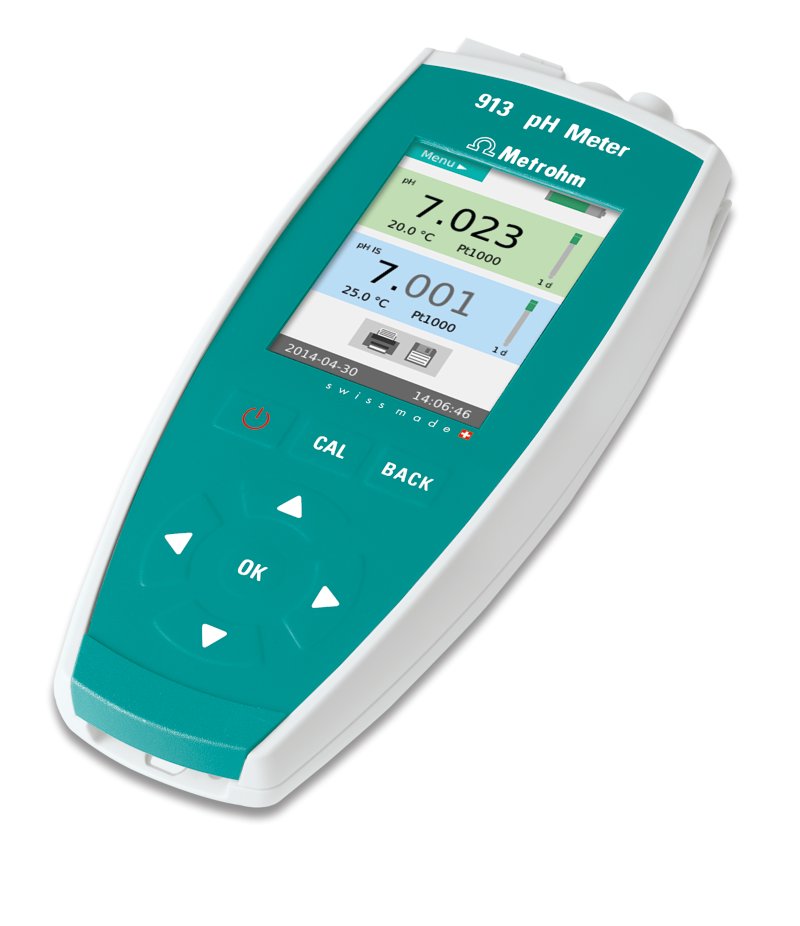

The pH values are carried out using a 913 pH Meter equipped with a pre-calibrated Unitrode easyClean (Figures 1 and 2).

To create the cathode slurry, an appropriate amount of sample is weighed into the sample beaker, and deionized water plus an organic solvent as wetting agent (according to the standards) are added. Afterwards, the cathode slurry pH is determined.

This method offers very accurate results, as shown in Tables 1 and 2.

The 913 pH Meter equipped with the Unitrode easyClean is an excellent combination to measure pH in cathode materials.

This setup is inexpensive, user-friendly, and takes up minimal bench space. Furthermore, as the name indicates, the easyClean diaphragm of the Unitrode can be easily cleaned even in the case of heavily contaminating samples like carbon black.
