According to the US Bureau of Justice, in the years 2007–09 more than half of state prisoners and nearly two-thirds of sentenced prison inmates met formal criteria for drug dependence or abuse. But how do the drugs get into prisons? They enter illegally inside of body cavities, baby diapers, bibles, and of course the mail. Once stationery is treated with a concentrated solution of heroin, MDMA, LSD, or fentanyl, small portions of a letter can be easily distributed among inmates. Narcotics in prison mail is such an issue that millions of dollars are being spent to re-work the system. Digitizing each piece of mail is one solution, but it is an imperfect one. It is time and personnel intensive, does not protect digitizers from harmful mail content, and it could potentially violate inmates’ rights. It is truly a complicated issue made even more complex by fentanyl. Mere exposure to trace amounts of fentanyl can be toxic for anyone handling laced mail, and death by fentanyl overdose is an issue on both sides of the bars. An ideal solution therefore would be a detection system that is quick, accurate, and efficient, and can test for the presence of drugs on paper at the point of receipt. Metrohm Raman offers excellent trace-detection solutions with both MISA and MIRA XTR DS systems, which can be used for instant onsite detection of opioids, cocaine, MDMA, and fentanyl. This Application Note describes trace detection of fentanyl on paper.

Raman systems with SERS capabilities can be used to provide positive onsite identification of fentanyl. This Application Note demonstrates Raman analysis of fentanyl-soaked paper, describes the SERS detection range for fentanyl on paper, and provides a real-world example of fentanyl identification.

Direct point-and-shoot analysis of notebook paper at a fentanyl concentration of 5 μg/ 0.635 cm2 yields a spectrum of substrate material, identified as cotton and paper (Figure 1). This is a typical limitation of using Raman alone for trace analysis applications, but it is not an issue for Metrohm's MIRA and MISA systems with dual Raman and SERS capabilities.

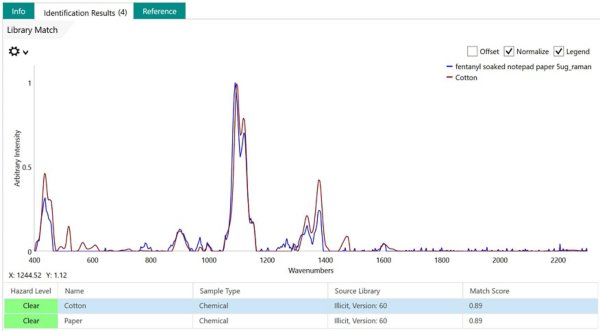

Figure 1. Fentanyl-soaked paper requires SERS for trace detection, while Raman simply identifies the substrate.

To demonstrate SERS detection of illicit drug-laced mail, this experiment begins with notebook paper cut into 0.635 cm (0.25 inch) squares. A stock solution of 0.1 mg/mL fentanyl in methanol was prepared and deposited onto these squares in the following volumes: 1 μL, 5 μL, 10 μL, 20 μL, and 50 μL to yield 0.1 μg, 0.5 μg, 1 μg, 2 μg, and 5 μg of fentanyl per 0.635 cm2. Each square was dried and placed into a glass vial with 500 μL of silver colloid. This vial was capped, shaken, and rested for five minutes to enhance extraction. Saline solution (100 μL of 0.9%) was added and the vial was agitated gently to mix. After one minute, this mixture was measured with the ID Kit OP on MIRA XTR DS, with results shown in Figure 2.

Figure 2. Strong SERS signature of fentanyl is detectable even at 0.5 ug—far below the typical dose of fentanyl in the real world.

SERS provides instant on-site identification of fentanyl in laced mail in four simple steps, as illustrated in the images above:

  1. Remove a small sample of the suspect paper
  2. Extract active compounds by shaking the paper sample in a vial with colloids.
  3. Add saline solution to the vial.
  4. Acquire data with ID Kit OP on MIRA or MISA

The results are unambiguous identification of fentanyl (Figure 3).

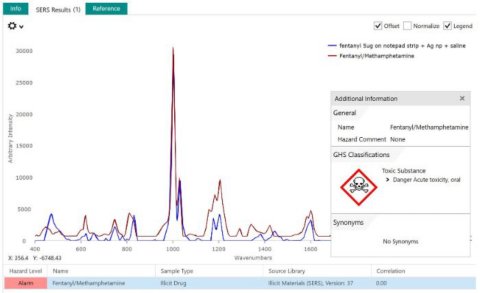

Figure 3. Positive ID of Fentanyl with GHS hazard warning.

Dual functionality MISA and MIRA Raman and SERS systems from Metrohm Raman are an excellent solution for real world issues like fentanyl-laced prison mail. Reduce the risk of exposure to deadly substances and save time, money, and personnel commitments without sacrificing the ability to positively identify narcotics in non-technical settings.
